| Model: | SDLG | Engine: | Weichai |
|---|---|---|---|
| Transmission: | LG gearbox | Min Steering Radius (mm): | 6888 |
| Max Breakout Force (KN): | ≥155 | Cooling/Heating System: | Air Conditioner |
| Vurgulamak: | Wheel Loader equipment,heavy equipment loader |
||

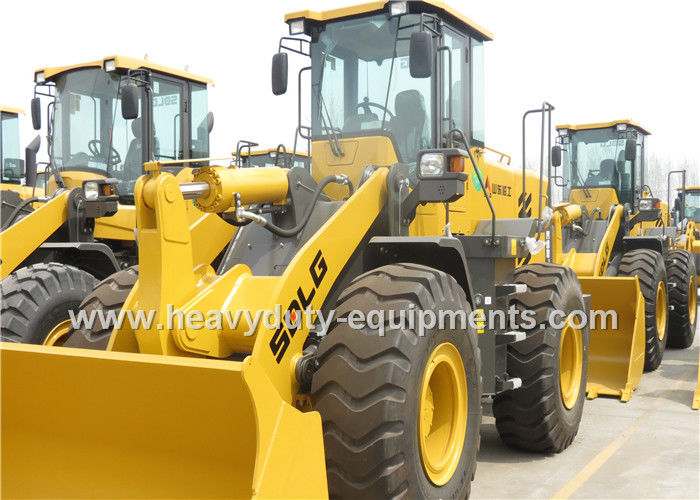

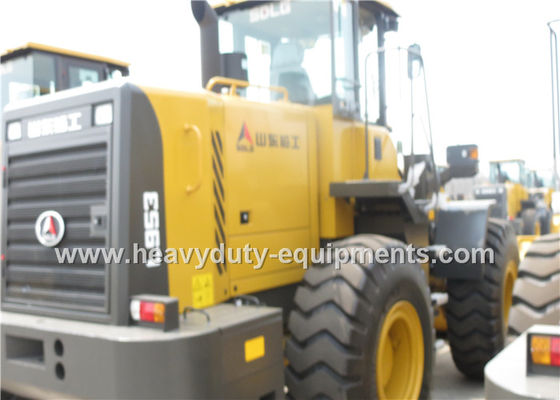

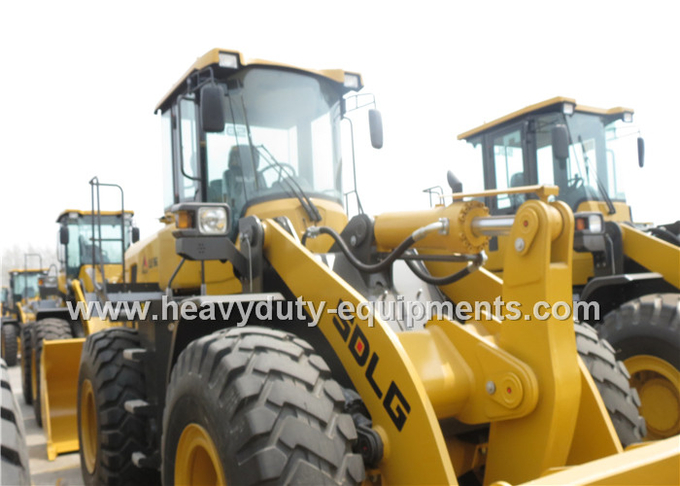

SDLG wheel loader LG953 with weichai engine SDLG transmission and axle
Specification:
| Item | LG953 | Engine | Weichai |
| Transmission | LG gearbox | Bucket Capacity ( m3) | 3 |
| Axle | LG Axle | Rated Load (kg) | 5000 |
| Hydraulic System | Pilot Control | Max Dumping Height (mm) | 3050 |
| Working Arm | Standard | Cycle Time (s) | ≤10.2 |
| Control Valve | 3 Valve | Min Steering Radius (mm) | 6888 |
| Brake System | Dual Brake Petal | Max Breakout Force (KN) | ≥155 |
| Cab | Standard | Dimension (L*W*H) (mm) | 7929*3024*3423 |
| Cooling/Heating System | Air Conditioner | Operating Weight (kg) | 16700 |
| Quick Coupler | No | Attachment | Optional |
Description:
LG953, a long-wheelbase loader for loading bulk materials and hard materials, features large breakout force and tipping load enjoyed by long-wheelbase loader as well as the flexibility and small turning angle enjoyed by short-wheelbase loader, and is widely applied in areas like sand plants, ports, construction sites, mines etc.
Advantages:
1. SDLG 5T planetary transmission case is used, with two front gear positions and one rear gear position. It is light and easy to operate, with long service life; Single-stage four-element twin-turbo hydraulic torque converter is provided, with large torque ratio and high transmission efficiency; Reinforced drive axle is configured, with large bearing capacity and high reliability.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
3. The self-developed digitized stepping dashboard of SDLG is adopted, which ensures high human-machine interaction; the centralized control is adopted for the electric apparatus of entire machine, which ensures convenient inspection and maintenance and high reliability of electrical apparatus element.
4. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
